General Description of Metal roofing
Today, people have more options to choose the roofing panel styles and colors they wanted. Metal roofings are everywhere, becuase of their advantages, such as long life expectancy, certain quality metal roofings can last more than 60 years without much maintainance work. They are more widely used in residential, commercial, agricultural, industrial buildings.
In a metal roofing system, not only the roofing panels but also the roof trims including ridge channel, drip edge, eave, and gutter are also can be made by the roll forming process.

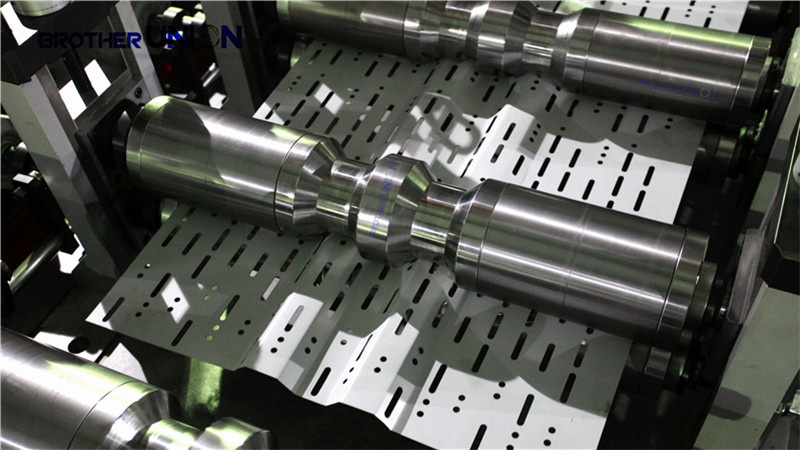

The following roof sheet profiles have been producing by roll forming machine made by Brother Union Machinery.
R Type Roofing Panel
R-Panel / PBR-panel is a corrugated metal roof that has ribs of varying heights. The panels can be installed on metal purlins or beams. It is a low-maintenance, durable roofing material and is widely used as roofing in residential, commercial, industrial, and agricultural buildings. It also works as a wall-siding commonly. Brother Union Machinery has been manufacturing roll formers for this type of multi-use wall and roof panels. |
 Corrgated Roofing PanelA corrugated metal panel, also called corrugated galvanised iron(CGI), these panels are mass-produced nowadays through roll forming. Due to the corrugated sheet metal has advantages of lower cost, corrosion-resistant, high-strengh,and easily transported, the panels are widely used as roofing, wall siding, floor decking. |
 U Type Roof panelU-panel is a corrugated metal roof that has same heights ribs. It is section shape is similar like R roof panel. Brother Unin Machinery has been manfuacring roll former for U-panel manufacturers.
|
 IBR Panel / Box Profile Roofing PanelIBR(Inverted Box Rib) is a roof panel with a square fluted profile, which is popular in the Africa roofing market. This sheet is like any other metal roofing sheet but features distinctive box sections rather than curved corrugations. They are commonly used in agricultural buildings, commercial warehouses, and residential buildings.
|
 Standing Seam Roof Panel, Wall PanelA standing seam metal roofing is characterized by a flat space between upright or trapezoidal legs, and because its fasteners are concealed, it looks neat and modern. The standing seam roof panel can be used as a roofing panel and wall panel. Brother Union Machinery has produced industrial roll forming lines that Produce standing seam roofing panels for the American market.
|
Though Brother Union Machinery has been producing roll forming machines for roofing sheet business worldwide. We have to say there are too many patterns of roofing sheets, we are a professional machinery manufacturer that focus on making machines, but not a roofing manufacturer. We just list the part of common roofing profiles we have been involving.
We are always here to serve a roofing panel manufacturer, and we hope to receive your new roll-forming designing request with inventive roofing profiles. After all, our engineers and technicians are very expert in custom roll forming machines.
Related Metal Sheeting Profile Drawings
 Box Profile | Roofing Sheet | Wall Panel |
|  Box Profile | Roofing Panel | Wall | Pane |
|  Corrugated Sheet Metal |
 R-Panel | 3 low ribs | Roof Panel |
|  R-Panel | 1 low rib | Roofing Sheet |
|  U-Panel | Roof Panel | Wall Panel |
 Custom Design | Standing Seam | Roofing Panel | Wall Panel |
|  Standing Seam | Roofing Panel |
|  Standing Seam | Roofing Panel |
 Standing Seam | Wall Siding Panel |
|  Standing Seam | Wall Siding Panel | Roof Panel |
|
|
