Roller Die in Roll Forming Machines

Roller Dies are the key parts of roll forming equipment. Scientific Design，Qualified Roll Material, High-precision machining and Professional Heat Treatment, these are important to make qualified roll froming machines.

Brother Union Machinery R & D team has expert technology and rich experienced in the rolls & tooling design and manufacture to provide customers with quality, durability, cost-effective roll forming tooling.

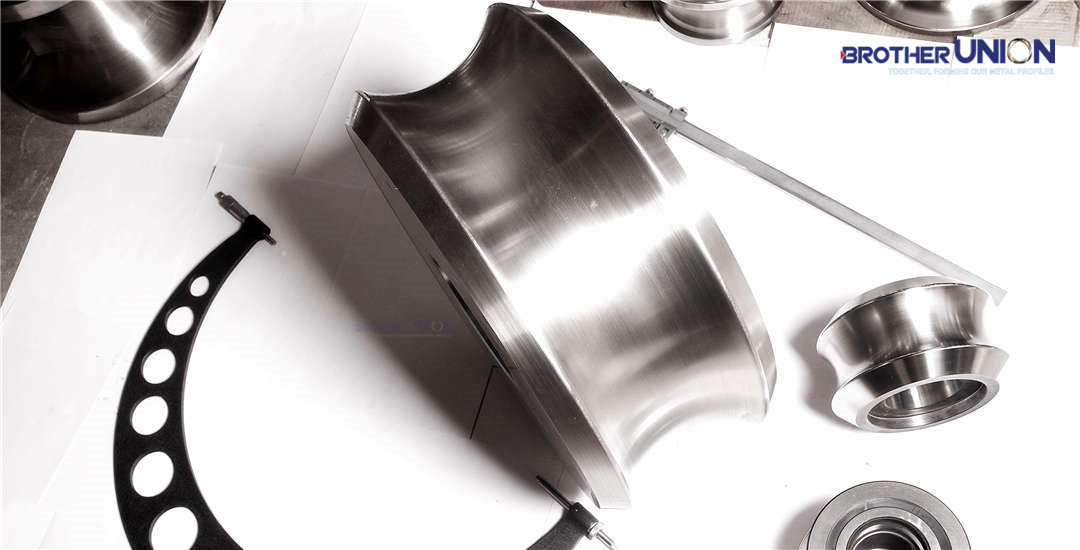

Roller Dies with Strict Quality Control

Qualified Roller Material
According to the chemical and mechanical properties of profile materials, our engineers use proper materials to design the steel rollers to fit the roll forming processing, e.g. Cr12MoV, SKD11, D2, M2 and etc.

Cassette Roller Die for roll forming machines

Based on the same one roll forming machine, the Interchange Cassettes, can complete production of various different section shapes profiles in one roll forming line. In this way, it not only has the ability to produce various type metal profiles, but also significantly shorten roller tooling changeover downtime and improve the production efficiency.

Qualified Rollers for Roll Forming Mill

Professional Heat Treatment for parts in roll forming line

During the roller processing, we arranged high-quality heat-treatment to roller dies and related parts to ensure the rollers of roll formers have high wear resistance and long service life.
High Precision Machining Rollers for Roll Forming Machines

Engineers formulate the basic forming process, and the optimal forming process was rechecked by COPRA software simulation.
CNC is used to manufacture high-precision rolls that fit complex profile roll forming process.
A high degree of smoothness of the roll tooling surface to prevent damage to the profile surface during the roll forming process.
R & D Team of Brother Union Roll Forming Machinery

Brother Union Machinery R & D team has expert technology and rich experienced in the roller tooling design and manufacture to provide customers with quality, durability, cost-effective roll forming toolings.
