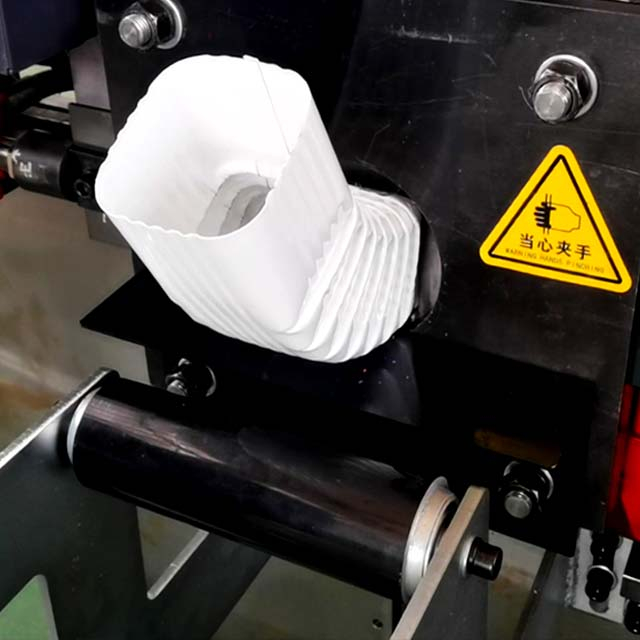

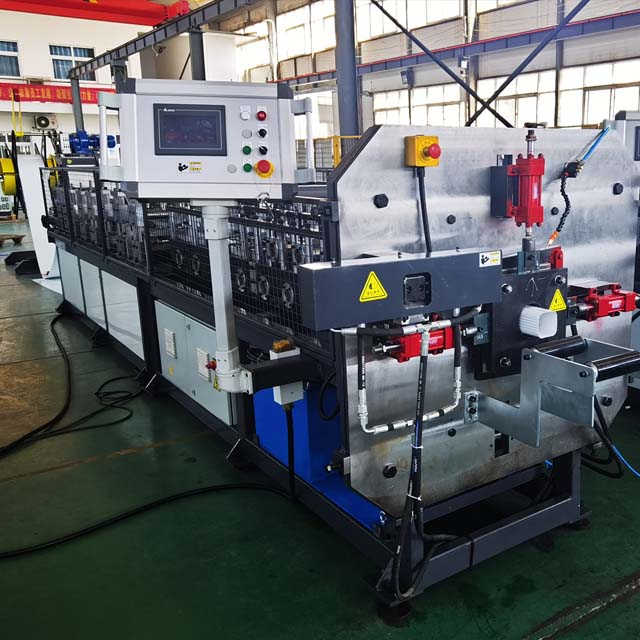

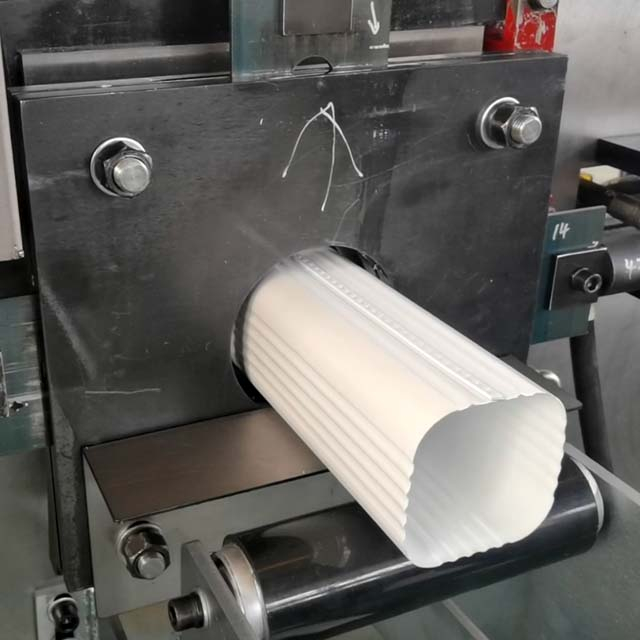

This rectangular downpipe Roll Forming Machine automatically adjusts to produce the downpipe according to client requirement. The machine is controlled by PLC, fully automatic working. It can automatically record the production quantity, automatically measure the length. It has Alarm Display and Emergency Stop function. All the machine working actions can be controlled by control panel.
| Material | Thickness | I.D. | Max. O.D. | Yield Strength | Max. Coil Weight |
| Pre-coated Steel Coil | 0.3-0.5 mm | Ф508mm | Ф1200 mm | ≤320 Mpa | 3 Tons |
| Work Temperature | -10℃~35℃ |
| Voltage | 380V±10%，50 HZ，3P |
| Air Pressure | 0.6~1.2 Mpa |
| Total Power | ≈11KW |
| Production Capacity | about 0-20 m/min(Not include shearing time) |

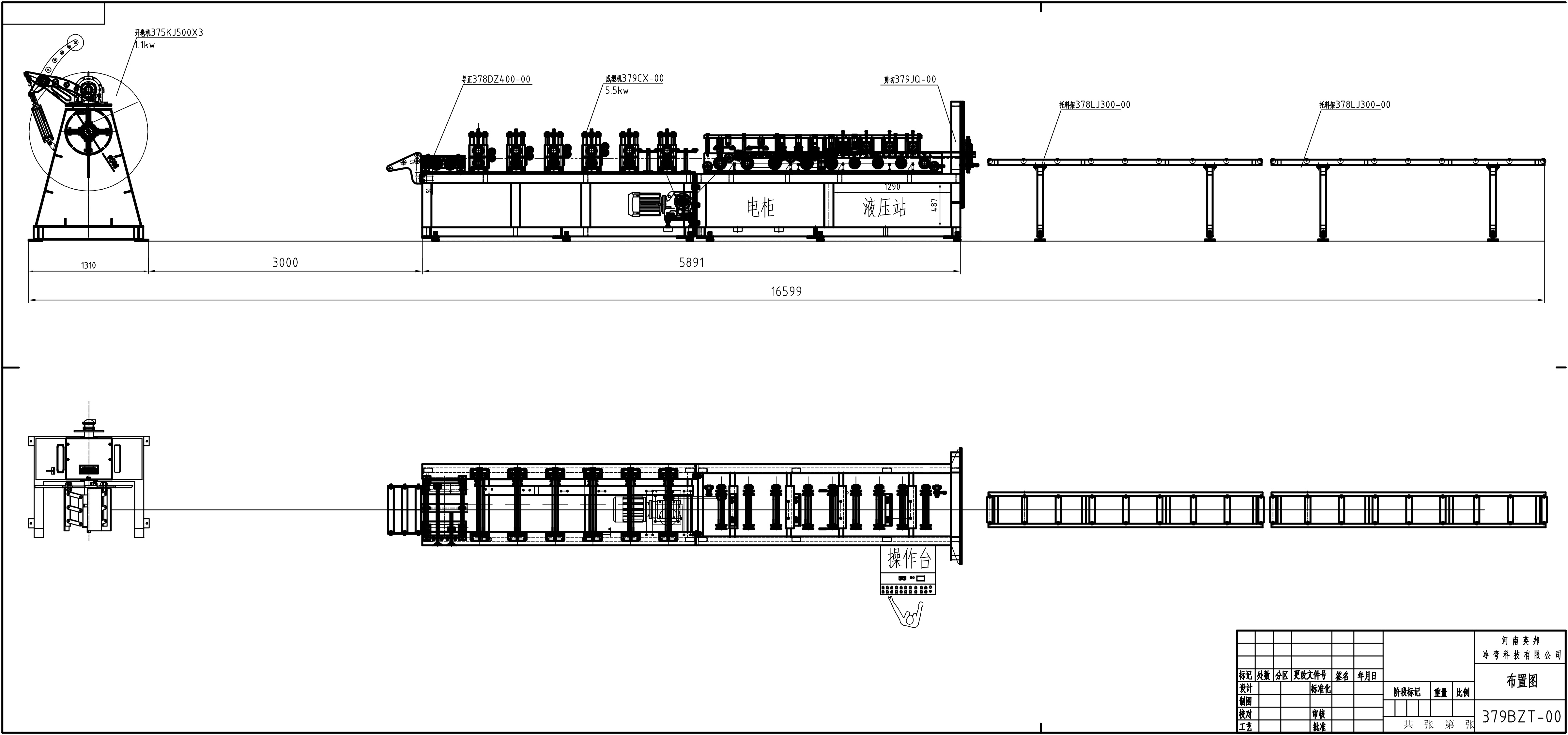

| Dimension (L*W*H) | L≈18 m, W≈ 2m, H≈ 1.8m |
| Shipping Container | 40GP |
